Metal wall and soffit panels offer a visual design element that can enhance a variety of architectural styles. Custom-Bilt offer designs to create finished appearances that range from historical or rustic designs in natural or weathered metals to an edgier contemporary look in painted colors.

Our wall and soffit panels come in matching or accent colors to create dramatic effects in similar profile patterns. These panels offer a flush-panel interlocking seam. All Custom-Bilt Metals Contour corrugated panels use ULTRA-Cool® technology to reflect more heat than virtually any other coating and have the best color retention available, so our metal wall and soffit panels help you earn credits towards LEED certification.  Our metal and wall panels meet LEED criteria with 25% recycled steel and are 100% recyclable.

Wall and Soffit Panels

We can help with the design and detail of our project beyond the roof. Choose wall and soffit panels in matching or accent colors to create dramatic effects in similar profile patterns. These panels offer a flush-panel interlocking seam.

Panel Depth: 1" Standard Panel Width: 12" Available with Stiffening Ribs Stucco embossed, Smooth, Vented WS100 Sale Sheet WS100 Specifications WS100 with Reveal WS100 Install Guide

Corrugated Metal Roof and Wall Panels

For designs enhanced by a corrugated look, Custom-Bilt Metals offers corrugated roof and wall panels in two profiles. Available as a standard corrugated with a 7/8"-inch corrugation or 7.2" rib panels, both are factory fabricated and can be ordered in a variety of metal types and finishes including Bare Zincalume®, natural copper and weathering steel. All Custom-Bilt Metals corrugated roof and wall panels use full 70% PVDF (Polyvinylidene fluoride) or Kynar 500® or Hylar® 5000 or Fluropon® reflective pigments that reflect more heat than virtually any other coating and will not fade. Our metal and wall panels meet LEED criteria with 25% recycled steel and are 100% recyclable.

Corrugated Panels Sale Sheet Contour Install Guide

TFR-36 and PBR Panels

For economical roof and wall installations, the TFR-36 Panel and PBR Panel are outstanding options for commercial, industrial and agricultural applications. Trim packages, matching flat stock and matching polycarbonate skylights available.

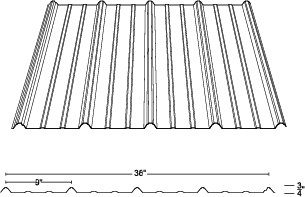

TFR-36 Panel 36" coverage for faster installations Anti-siphon groove improves weather tightness Purlin-bearing leg provides quality of side lap Installs over open framing or solid substrates Available in Galvanized and Galvalume/Zincalume, or coated with Silicon Modified Polyester (SMP) or Kynar colors TFR36 Sale Sheet PBR-TFR Guide PBR-TFR Color Chart

PBR Panel 36" coverage for faster installations Available in 26ga and 24ga Purlin-bearing leg provides quality of side lap Installs over open framing or solid substrates Available in Galvanized and Galvalume/Zincalume, or coated with Silicon Modified Polyester (SMP) or Kynar colors TFR36 Sale Sheet PBR-TFR Guide PBR-TFR Color Chart
